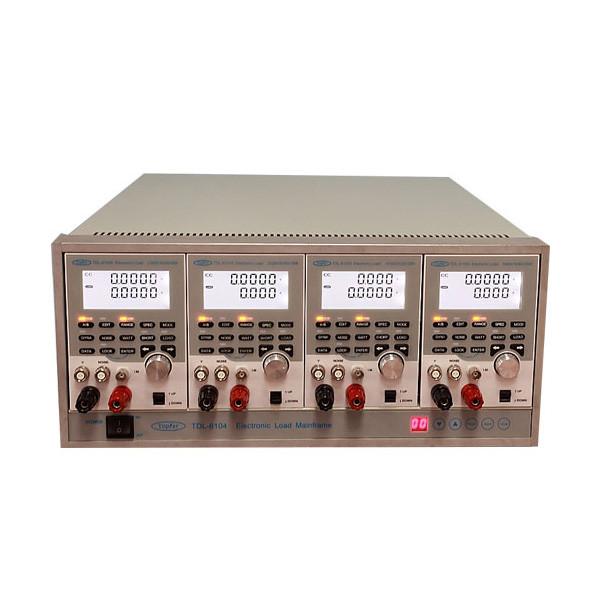

Programmable Modular Electronic AC DC Load Tester 12 bits OEM

Brand Name : Topfer

Model Number : TDL-6100

Place of Origin : China

MOQ : one set

Price : to be discussed

Payment Terms : T/T

Supply Ability : 10 sets /20 days

Delivery Time : 1 to 2 weeks

Packaging Details : wooden crate

Resolution : 12 bits

Dynamic : CC&CR

Accuracy : 2%F.S

Rise Time : 15us

Gear : 0-10V

Input Impedance : 100KΩ(min.)@60V

Contact Now

The programmable DC electronic load features a user-friendly modular design, offering plug-and-play convenience

Features:

  • User-friendly modular design, plug and play
  • For high current and high power applications, multiple electronic load modules can be paralleled up to 2400W
  • Master/slave interface design allows for the synchronous execution of multiple electronic load modules
  • RS-232 and GPIB (optional) standard interfaces enable automation testing with ATS
  • Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), and Constant Power (CP) operation modes
  • Minimum setting resolution of up to 150μA
  • Low input impedance, capable of pulling large currents at low voltages
  • High-speed dynamic load simulation up to 20KHz
  • Real-time dynamic load simulation and output measurement

Specification sheet:

Model 61006 61010 61025 61030
Input/Output 20W 60W 20W 100W 25W 250W 30W 300W
DC Output Current 0~0.6A 0~6A 0~2A 0~20A 0~1A 0~10A 0~6A 0~60A
Voltage 2~64V(2~60V for CR Mode) 2~64V(2~61V for CR Mode) Mode) 2~256V(2~250V for CR Mode) 2~64V(2~60V for CR Mode)
Minimum Operating Voltage 0.9V@600mA 1.0V@6A 0.9V@2A 1.0V@20A 1.3V@10A 1.5V@10A 0.8V at 6A 1.0V at 10A
CC Mode
Range 0~0.6A 0~6A 0~2A 0~20A 0~1A 0~10A 0~6A 0~60A
Resolution 0.15mA 1.5mA 0.5mA 5mA 0.25mA 2.5mA 1.5mA 15mA
Accuracy 0.1%+0.1% F.S 0.1%+0.2% F.S 0.1%+0.1 F.S 0.1%+0.2% F.S 0.1%+0.1 F.S 0.1%+0.2% F.S 0.1%+0.1 F.S 0.1%+0.2% F.S
CR Mode
Range

0.25Ω~1KΩ(60W/15V)

10Ω-40KΩ(60W/60V)


10Ω~40KΩ(60W/60V)

 0.075Ω~300Ω(100W/15V)
3Ω~12KΩ(100W/60V)		 0.25Ω~1KΩ(250W/25V)
25Ω~100Ω(250W/250V)		 0.025Ω~100Ω(300W/15V)
1Ω~4KΩ(300W/60V)
Resolution 12 bits 12 bits 12 bits 12 bits
Accuracy

0.1Ω(0.25~100Ω)

0.1Ω(50-100Ω)

 0.1Ω(0.075~50Ω)
0.01Ω(100-1KΩ)		 0.1Ω(0.25~100Ω)
0.01Ω(100-1KΩ)		 0.1Ω(1~100Ω)
0.01Ω(100-1KΩ)
CV Mode
Range 1~64V 1~64V 1.5~256V 1~64V
Resolution 16mA 16mA 64mA 16mA
Accuracy 0.05%±0.1%F.S 0.05%±0.1%F.S 0.05%±0.1%F.S 0.05%±0.1%F.S
CP Mode
Range 0.003~20W 0.03~60W 0.01~20W 0.01~100W 0.06~25W 0.06~250W 0.03~30W 0.03~300W
Resolution 0.3mW 3mW 1mW 10mW 2mW 20mW 3mW 30mW
Accuracy 2%F.S 3%F.S 2%F.S 3%F.S 2%F.S 3%F.S 2%F.S 3%F.S
Dynamic Mode
Dynamic CC&CR CC&CR CC&CR CC&CR
Time1&Time2 0.025ms~10ms 1ms~10s 0.025ms~10ms 1ms~10s 0.025ms~10ms 1ms~10ms 0.025ms~10ms 1ms~10s
Resolution 1μs 1ms 1μs 1ms 1μs 1ms 1μs 1ms
Accuracy 2%F.S 2%F.S 2%F.S 2%F.S
Slope 0.1~25mA/μs 1.0~250mA/μs

0.32~80mA/us

mA/μs

 3.2~800mA/μs 0.16~40mA/μs 1.6~400mA/μs 0.001~0.25mA/μs 0.01~2.5mA/μs
Resolution 0.1mA/μs 1.0mA/μs

0.32mA/us

mA/μs

 3.2mA/μs 0.16mA/μs 1.6mA/μs 0.001mA/μs 0.01mA/μs
Accuracy 10%±20μS 10%±20μS 10%±20μS 10%±20μS
Rise Time 15us 15us 15us 15us
Current 0~0.6A 0~6A 0~2A 0~20A 0~1A 0~10A 0~6A 0~60A
Range 0-0.6A 0~6A 0~2A 0~20A 0-1A 0-10A 0-6A 0-60A
Gear 0-10V 0-10V 0-10V 0-10V
Accuracy 0.2%F.S. 0.25%F.S. 0.2%F.S. 0.25%F.S. 0.25%F.S. 0.25%F.S. 0.2%F.S. 0.25%F.S.
Resolution 0.15mA 1.5mA 0.5mA 5mA 0.25mA 2.5mA 1.5mA 15mA
Accuracy 2%F.S 2%F.S 2%F.S 2%F.S
Short Circuit
Resistance 0.08Ω(max.) 0.04Ω(max.) 0.025Ω(max.) 0.016Ω(max.)
Current 6A 20A 10A 60A
Input Impedance 100KΩ(min.)@60V 100KΩ(min.)@60V 100KΩ(min.)@ 60V 100KΩ(min.)@60V
Temperature Coefficient 100PPM/℃(typical)CC 100PPM/℃(typical)CC 100PPM/℃(typical)CC 100PPM/℃(typical)CC
Measurement Parameters
Voltage Measurement
Range 0-16V 16-64V 0-16V 16-64V 0-16V 16V-64V 0-25.6V 25.6V-25.6V
Resolution 0.5mV 2mV 0.5mV 2mV 0.8mV 8mV 0.5mV 2mV
Accuracy 0.02%+0.1%F.S. 0.02%+0.1%F.S. 0.02%+0.1%F.S. 0.02%+0.1%F.S.
Current Measurement
Range 0~0.6A 0~6A 0~2A 0~20A 0~1A 0~10A 0~6A 0~60A
Resolution 0.0187mA 0.1875mA 0.0625mA 0.0625mA 0.312mA 0.312mA 0.1875mA 1.875mA
Accuracy 0.1%+0.1%FF 0.1%+0.1%F.S. 0.1%+0.1%F.S. 0.1%+0.1%F.S.
Power Measurement
Range 0-20W 20-60W 0-20W 20-100W 0-25W 25-250W 0-30W 30-300W
Accuracy*1 5kg/11 lbs 5kg /11 lbs 5kg /11 lbs 5kg /11 lbs
